RenderTools::Rendernode Class Reference

#include <Rendernode.h>

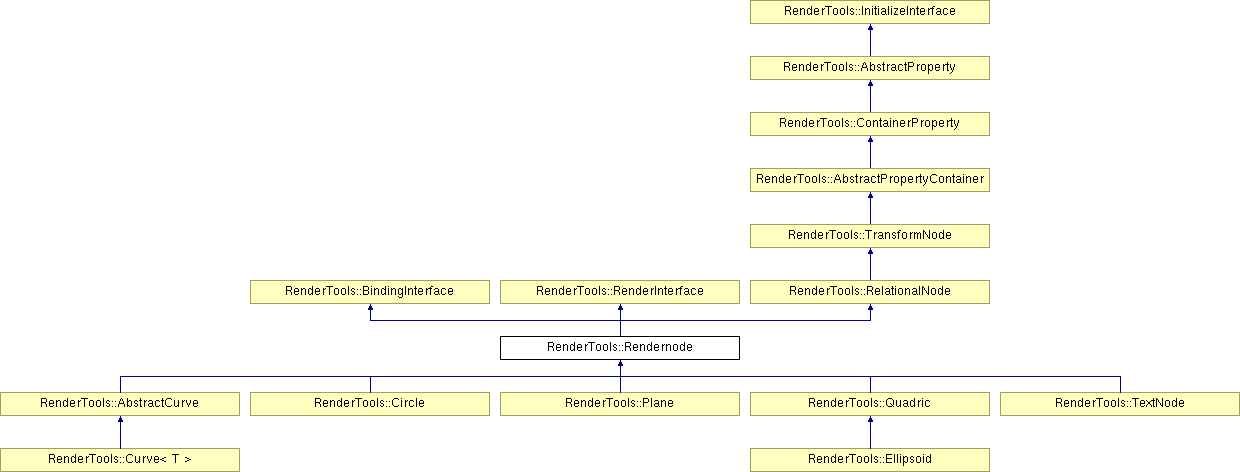

Inheritance diagram for RenderTools::Rendernode:

List of all members.

Public Types
enum	RenderComponents {   NONE = 0x0000, BOUNDS = 0x0001, AXES = 0x0002, NORMALS = 0x0040,   ALL = 0xFFFF }
typedef unsigned int	ComponentMask
Public Member Functions
	Rendernode (void)
virtual	~Rendernode (void)
virtual void	createProperties (void)
virtual const string	getTypeName (bool ofComponent=false) const
void	removeVertexBuffers (bool send=true)
	removes all vertex buffers
void	addVertexBuffer (const string buffer, bool send=true)
void	addVertexBuffer (const VertexbufferPtr buffer, bool send=true)
const VertexbufferProxyContainerPtr	getVertexbufferProxies (void) const
const Vec3 &	getColor (void) const
void	setColor (const Vec3 &color, bool send=true)
virtual void	onInitialize (void)
virtual void	onRender (void)
virtual void	onBind (int unit=-1)
virtual void	onUnbind (int unit=-1)
void	setProgram (string name, bool send=true)
const ProgramProxyPtr	getProgramProxy (void) const
void	setSampler (string name, bool send=true)
const SamplerProxyPtr	getSamplerProxy (void) const
void	setStateset (string name, bool send=true)
const StatesetProxyPtr	getStatesetProxy (void) const
void	setComponentMask (ComponentMask mask, bool send=true)
	sets the mask for rendering components
void	setComponentMask (int mask, bool send=true)
	sets the mask for rendering components
ComponentMask	getComponentMask (void) const
void	setIndex (int index, bool send=true)
bool	getVisible (void) const
void	setVisible (bool state, bool send=true)
Static Public Member Functions
static PropertyPtr	create (const XMLNodePtr &xml=XMLNodePtr())
Protected Attributes
Vec3	m_color
ProgramProxyPtr	m_program
StatesetProxyPtr	m_stateset
SamplerProxyPtr	m_sampler
VertexbufferProxyContainerPtr	m_buffers
ComponentMask	m_componentMask
	the components shown
int	m_index
bool	m_visible

---

Detailed Description

Definition at line 16 of file Rendernode.h.

---

Member Typedef Documentation

typedef unsigned int RenderTools::Rendernode::ComponentMask

Definition at line 22 of file Rendernode.h.

---

Member Enumeration Documentation

enum RenderTools::Rendernode::RenderComponents

bitmask that determines which components are rendered

Enumerator:

NONE
BOUNDS
AXES
NORMALS
ALL

Definition at line 23 of file Rendernode.h.

---

Constructor & Destructor Documentation

RenderTools::Rendernode::Rendernode

(

void

)

Definition at line 15 of file Rendernode.cpp.

RenderTools::Rendernode::~Rendernode

(

void

)

[virtual]

Definition at line 48 of file Rendernode.cpp.

---

Member Function Documentation

void RenderTools::Rendernode::addVertexBuffer	(	const VertexbufferPtr	buffer,
		bool	send = true
	)

Definition at line 195 of file Rendernode.cpp.

void RenderTools::Rendernode::addVertexBuffer	(	const string	buffer,
		bool	send = true
	)

Definition at line 203 of file Rendernode.cpp.

PropertyPtr RenderTools::Rendernode::create

(

const XMLNodePtr &

xml = XMLNodePtr()

)

[static]

Reimplemented from RenderTools::RelationalNode.

Reimplemented in RenderTools::AbstractCurve, RenderTools::Circle, RenderTools::Curve< T >, RenderTools::Ellipsoid, RenderTools::Plane, and RenderTools::TextNode.

Definition at line 23 of file Rendernode.cpp.

void RenderTools::Rendernode::createProperties

(

void

)

[virtual]

Reimplemented from RenderTools::RelationalNode.

Reimplemented in RenderTools::AbstractCurve, RenderTools::Circle, RenderTools::Curve< T >, RenderTools::Ellipsoid, RenderTools::Plane, and RenderTools::TextNode.

Definition at line 31 of file Rendernode.cpp.

const Vec3 & RenderTools::Rendernode::getColor

(

void

)

const

Definition at line 230 of file Rendernode.cpp.

Rendernode::ComponentMask RenderTools::Rendernode::getComponentMask

(

void

)

const

Definition at line 280 of file Rendernode.cpp.

const ProgramProxyPtr RenderTools::Rendernode::getProgramProxy

(

void

)

const

Definition at line 246 of file Rendernode.cpp.

const SamplerProxyPtr RenderTools::Rendernode::getSamplerProxy

(

void

)

const

Definition at line 257 of file Rendernode.cpp.

const StatesetProxyPtr RenderTools::Rendernode::getStatesetProxy

(

void

)

const

Definition at line 266 of file Rendernode.cpp.

const string RenderTools::Rendernode::getTypeName

(

bool

ofComponent = false

)

const [virtual]

Reimplemented from RenderTools::RelationalNode.

Reimplemented in RenderTools::AbstractCurve, RenderTools::Circle, RenderTools::Curve< T >, RenderTools::Ellipsoid, RenderTools::Plane, and RenderTools::TextNode.

Definition at line 44 of file Rendernode.cpp.

const VertexbufferProxyContainerPtr RenderTools::Rendernode::getVertexbufferProxies

(

void

)

const

Definition at line 226 of file Rendernode.cpp.

bool RenderTools::Rendernode::getVisible

(

void

)

const

Definition at line 289 of file Rendernode.cpp.

void RenderTools::Rendernode::onBind

(

int

unit = -1

)

[virtual]

Implements RenderTools::BindingInterface.

Definition at line 65 of file Rendernode.cpp.

void RenderTools::Rendernode::onInitialize

(

void

)

[virtual]

Reimplemented from RenderTools::RelationalNode.

Reimplemented in RenderTools::AbstractCurve, RenderTools::Circle, RenderTools::Ellipsoid, RenderTools::Plane, and RenderTools::TextNode.

Definition at line 51 of file Rendernode.cpp.

void RenderTools::Rendernode::onRender

(

void

)

[virtual]

bind program and/or stateset and/or sampler

override stateset color, but not program color

Implements RenderTools::RenderInterface.

Reimplemented in RenderTools::TextNode.

Definition at line 76 of file Rendernode.cpp.

void RenderTools::Rendernode::onUnbind

(

int

unit = -1

)

[virtual]

Implements RenderTools::BindingInterface.

Definition at line 73 of file Rendernode.cpp.

void RenderTools::Rendernode::removeVertexBuffers

(

bool

send = true

)

removes all vertex buffers

Definition at line 189 of file Rendernode.cpp.

void RenderTools::Rendernode::setColor	(	const Vec3 &	color,
		bool	send = true
	)

Definition at line 234 of file Rendernode.cpp.

void RenderTools::Rendernode::setComponentMask	(	int	mask,
		bool	send = true
	)

sets the mask for rendering components

Definition at line 275 of file Rendernode.cpp.

void RenderTools::Rendernode::setComponentMask	(	ComponentMask	mask,
		bool	send = true
	)

sets the mask for rendering components

Definition at line 270 of file Rendernode.cpp.

void RenderTools::Rendernode::setIndex	(	int	index,
		bool	send = true
	)

Definition at line 284 of file Rendernode.cpp.

void RenderTools::Rendernode::setProgram	(	string	name,
		bool	send = true
	)

Definition at line 241 of file Rendernode.cpp.

void RenderTools::Rendernode::setSampler	(	string	name,
		bool	send = true
	)

Definition at line 252 of file Rendernode.cpp.

void RenderTools::Rendernode::setStateset	(	string	name,
		bool	send = true
	)

Definition at line 261 of file Rendernode.cpp.

void RenderTools::Rendernode::setVisible	(	bool	state,
		bool	send = true
	)

Definition at line 293 of file Rendernode.cpp.

---

Member Data Documentation

VertexbufferProxyContainerPtr RenderTools::Rendernode::m_buffers [protected]

Definition at line 75 of file Rendernode.h.

Vec3 RenderTools::Rendernode::m_color [protected]

Definition at line 69 of file Rendernode.h.

ComponentMask RenderTools::Rendernode::m_componentMask [protected]

the components shown

Definition at line 76 of file Rendernode.h.

int RenderTools::Rendernode::m_index [protected]

Definition at line 77 of file Rendernode.h.

ProgramProxyPtr RenderTools::Rendernode::m_program [protected]

Definition at line 71 of file Rendernode.h.

SamplerProxyPtr RenderTools::Rendernode::m_sampler [protected]

Definition at line 74 of file Rendernode.h.

StatesetProxyPtr RenderTools::Rendernode::m_stateset [protected]

Definition at line 73 of file Rendernode.h.

bool RenderTools::Rendernode::m_visible [protected]

Definition at line 78 of file Rendernode.h.

---

The documentation for this class was generated from the following files:

• C:/development/RenderTools/src/factory/rendernode/Rendernode.h
• C:/development/RenderTools/src/factory/rendernode/Rendernode.cpp
