RenderTools::Sampler Class Reference

#include <Sampler.h>

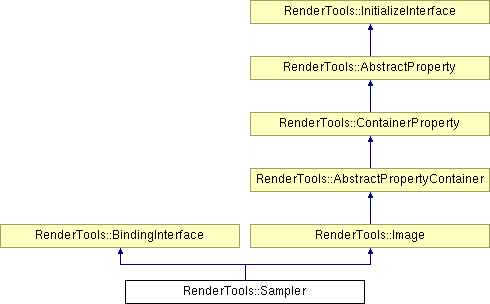

Inheritance diagram for RenderTools::Sampler:

List of all members.

Public Member Functions
	Sampler (GLuint width, GLuint height, GLubyte *data=0)
	Sampler (void)
virtual	~Sampler (void)
virtual void	createProperties (void)
virtual const string	getTypeName (bool ofComponent=false) const
virtual void	onInitialize (void)
virtual void	onBind (int unit)
virtual void	onUnbind (int unit)
void	setTexEnv (void)
void	setData (const void *data)
void	clear (void)
void	download (string filename="")
void	setDefaultColor (const Vec4 &color)
const Vec4 &	getDefaultColor (void) const
GLuint	getWidth (void) const
GLuint	getHeight (void) const
GLuint	getWidth2 (void) const
GLuint	getHeight2 (void) const
Vec2	getSize (void) const
Vec2	getSize2 (void) const
GLuint	getID (void) const
GLenum	getInternalFormat (void) const
GLenum	getTarget (void) const
GLenum	getMode (void) const
GLenum	getWrap (void) const
GLenum	getFilter (void) const
GLboolean	isResident (void) const
Static Public Member Functions
static PropertyPtr	create (const XMLNodePtr &xml=XMLNodePtr())
Protected Attributes
GLuint	m_w2
	power of two width
GLuint	m_h2
	power of 2 height
GLuint	m_id
	sampler object id ( glGenSamplers )
GLenum	m_internal
GLenum	m_target
	depending on m_makePOT being true or false, resp.
GLenum	m_mode
	GL_MODULATE, GL_DECAL, GL_BLEND, or GL_REPLACE.
GLenum	m_wrap
	GL_CLAMP, GL_CLAMP_TO_EDGE, or GL_REPEAT.
GLenum	m_filter
GLuint	m_formatGL
GLuint	m_typeGL
GLboolean	m_makePOT
	if true, sampler is forced to be Power of Two
GLboolean	m_doMipMap
	if true, mipmaps are generated before upload
GLboolean	m_doCleanup
	if set, all datablocks are freed after construction
Vec4	m_defaultColor
bool	m_overrideDefaultColor

---

Detailed Description

Definition at line 23 of file Sampler.h.

---

Constructor & Destructor Documentation

Sampler::Sampler	(	GLuint	width,
		GLuint	height,
		GLubyte *	data = 0
	)

Definition at line 14 of file Sampler.cpp.

Sampler::Sampler

(

void

)

Definition at line 34 of file Sampler.cpp.

Sampler::~Sampler

(

void

)

[virtual]

delete the texture object

Definition at line 349 of file Sampler.cpp.

---

Member Function Documentation

void Sampler::clear

(

void

)

Reimplemented from RenderTools::AbstractProperty.

Definition at line 611 of file Sampler.cpp.

PropertyPtr Sampler::create

(

const XMLNodePtr &

xml = XMLNodePtr()

)

[static]

Reimplemented from RenderTools::Image.

Definition at line 53 of file Sampler.cpp.

void Sampler::createProperties

(

void

)

[virtual]

Reimplemented from RenderTools::Image.

Definition at line 61 of file Sampler.cpp.

void Sampler::download

(

string

filename = ""

)

Definition at line 628 of file Sampler.cpp.

const Vec4 & Sampler::getDefaultColor

(

void

)

const

Definition at line 354 of file Sampler.cpp.

GLenum Sampler::getFilter

(

void

)

const

Definition at line 406 of file Sampler.cpp.

GLuint Sampler::getHeight

(

void

)

const

Reimplemented from RenderTools::Image.

Definition at line 366 of file Sampler.cpp.

GLuint Sampler::getHeight2

(

void

)

const

Definition at line 374 of file Sampler.cpp.

GLuint Sampler::getID

(

void

)

const

Definition at line 386 of file Sampler.cpp.

GLenum Sampler::getInternalFormat

(

void

)

const

Definition at line 390 of file Sampler.cpp.

GLenum Sampler::getMode

(

void

)

const

Definition at line 398 of file Sampler.cpp.

Vec2 Sampler::getSize

(

void

)

const

Definition at line 378 of file Sampler.cpp.

Vec2 Sampler::getSize2

(

void

)

const

Definition at line 382 of file Sampler.cpp.

GLenum Sampler::getTarget

(

void

)

const

Definition at line 394 of file Sampler.cpp.

const string Sampler::getTypeName

(

bool

ofComponent = false

)

const [virtual]

Reimplemented from RenderTools::Image.

Definition at line 345 of file Sampler.cpp.

GLuint Sampler::getWidth

(

void

)

const

Reimplemented from RenderTools::Image.

Definition at line 362 of file Sampler.cpp.

GLuint Sampler::getWidth2

(

void

)

const

Definition at line 370 of file Sampler.cpp.

GLenum Sampler::getWrap

(

void

)

const

Definition at line 402 of file Sampler.cpp.

GLboolean Sampler::isResident

(

void

)

const

returns wether or not the Texture is resident

Definition at line 814 of file Sampler.cpp.

void Sampler::onBind

(

int

unit

)

[virtual]

Implements RenderTools::BindingInterface.

Definition at line 719 of file Sampler.cpp.

void Sampler::onInitialize

(

void

)

[virtual]

checks if the image data is already power of two and then uploads. if not power-of-two, allocates a new datablock and copies the image data into it. The image data and texture power-of-two data are detroyed after the upload.

copy the internal format from the format set by image

set default if no file was specified OR if it could not be found

if we dont have an initial buffer, create one.

we have non-power-of-two width & height, but no RECTANGLE_EXT,

TODO:FIXME bug in reading .tif ? crashes here -presumably on wrong data

oopsie. this happens when the image reads a different format than specified by the Sampler

DEBUG 0XDE1 = GL_TEXTURE_2D

Reimplemented from RenderTools::Image.

Definition at line 416 of file Sampler.cpp.

void Sampler::onUnbind

(

int

unit

)

[virtual]

i > 7 results in a GL_INVALID_VALUE error, contradicting http://www.opengl.org/sdk/docs/man/xhtml/glActiveTexture.xml resolved by taking the smaller of GL_MAX_TEXTURE_COORDS and GL_MAX_COMBINED_TEXTURE_IMAGE_UNITS instead of the documented larger

Implements RenderTools::BindingInterface.

Definition at line 772 of file Sampler.cpp.

void Sampler::setData

(

const void *

data

)

Definition at line 711 of file Sampler.cpp.

void Sampler::setDefaultColor

(

const Vec4 &

color

)

Definition at line 358 of file Sampler.cpp.

void Sampler::setTexEnv

(

void

)

Definition at line 735 of file Sampler.cpp.

---

Member Data Documentation

Vec4 RenderTools::Sampler::m_defaultColor [protected]

Definition at line 108 of file Sampler.h.

GLboolean RenderTools::Sampler::m_doCleanup [protected]

if set, all datablocks are freed after construction

Definition at line 107 of file Sampler.h.

GLboolean RenderTools::Sampler::m_doMipMap [protected]

if true, mipmaps are generated before upload

Definition at line 106 of file Sampler.h.

GLenum RenderTools::Sampler::m_filter [protected]

mipmap filtering, one of: GL_NEAREST, GL_LINEAR, GL_NEAREST_MIPMAP_NEAREST, GL_LINEAR_MIPMAP_NEAREST, GL_NEAREST_MIPMAP_LINEAR, GL_LINEAR_MIPMAP_LINEAR

Definition at line 93 of file Sampler.h.

GLuint RenderTools::Sampler::m_formatGL [protected]

data format in GL, corresponds to image format, one of: GL_COLOR_INDEX, GL_ALPHA, GL_RGB, GL_RGBA, GL_LUMINANCE, or GL_LUMINANCE_ALPHA.

Definition at line 97 of file Sampler.h.

GLuint RenderTools::Sampler::m_h2 [protected]

power of 2 height

Definition at line 60 of file Sampler.h.

GLuint RenderTools::Sampler::m_id [protected]

sampler object id ( glGenSamplers )

Definition at line 61 of file Sampler.h.

GLenum RenderTools::Sampler::m_internal [protected]

internal GL mode, one of the following : GL_ALPHA, GL_ALPHA4, GL_ALPHA8, GL_ALPHA12, GL_ALPHA16, GL_LUMINANCE, GL_LUMINANCE4, GL_LUMINANCE8, GL_LUMINANCE12, GL_LUMINANCE16, GL_LUMINANCE_ALPHA, GL_LUMINANCE4_ALPHA4, GL_LUMINANCE6_ALPHA2, GL_LUMINANCE8_ALPHA8, GL_LUMINANCE12_ALPHA4, GL_LUMINANCE12_ALPHA12, GL_LUMINANCE16_ALPHA16, GL_INTENSITY, GL_INTENSITY4, GL_INTENSITY8, GL_INTENSITY12, GL_INTENSITY16, GL_RGB, GL_R3_G3_B2, GL_RGB4, GL_RGB5, GL_RGB8, GL_RGB10, GL_RGB12, GL_RGB16, GL_RGBA, GL_RGBA2, GL_RGBA4, GL_RGB5_A1, GL_RGBA8, GL_RGB10_A2, GL_RGBA12, GL_RGBA16, GL_RGBA32F_ARB, GL_RGB32F_ARB, GL_ALPHA32F_ARB, GL_INTENSITY32F_ARB, GL_LUMINANCE32F_ARB, GL_LUMINANCE_ALPHA32F_ARB, GL_RGBA16F_ARB, GL_RGB16F_ARB, GL_ALPHA16F_ARB, GL_INTENSITY16F_ARB, GL_LUMINANCE16F_ARB, GL_LUMINANCE_ALPHA16F_ARB GL_STENCIL_INDEX1, GL_STENCIL_INDEX4, GL_STENCIL_INDEX8, GL_STENCIL_INDEX16, GL_DEPTH_COMPONENT16, GL_DEPTH_COMPONENT24, GL_DEPTH_COMPONENT32 GL_DEPTH_COMPONENT32F_NV, GL_DEPTH_BUFFER_FLOAT_MODE_NV

Definition at line 62 of file Sampler.h.

GLboolean RenderTools::Sampler::m_makePOT [protected]

if true, sampler is forced to be Power of Two

Definition at line 105 of file Sampler.h.

GLenum RenderTools::Sampler::m_mode [protected]

GL_MODULATE, GL_DECAL, GL_BLEND, or GL_REPLACE.

sampler mode, one of:

Definition at line 89 of file Sampler.h.

bool RenderTools::Sampler::m_overrideDefaultColor [protected]

Definition at line 109 of file Sampler.h.

GLenum RenderTools::Sampler::m_target [protected]

depending on m_makePOT being true or false, resp.

set to either GL_TEXTURE_2D or GL_TEXTURE_RECTANGLE_EXT,

Definition at line 87 of file Sampler.h.

GLuint RenderTools::Sampler::m_typeGL [protected]

data type in GL, corresponds to image data type, one of: GL_UNSIGNED_BYTE, GL_BYTE, GL_UNSIGNED_SHORT, GL_SHORT, GL_UNSIGNED_INT, GL_INT, GL_FLOAT, or GL_HALF_FLOAT.

Definition at line 100 of file Sampler.h.

GLuint RenderTools::Sampler::m_w2 [protected]

power of two width

Definition at line 59 of file Sampler.h.

GLenum RenderTools::Sampler::m_wrap [protected]

GL_CLAMP, GL_CLAMP_TO_EDGE, or GL_REPEAT.

sampler wrapping mode, one of:

Definition at line 91 of file Sampler.h.

---

The documentation for this class was generated from the following files:

• C:/development/RenderTools/src/factory/Sampler.h
• C:/development/RenderTools/src/factory/Sampler.cpp
